This new table top coffee vending machine can provide you smooth and creamy coffee. Boost your office productivity while bringing joy to the staff room with our coffee vending machines.

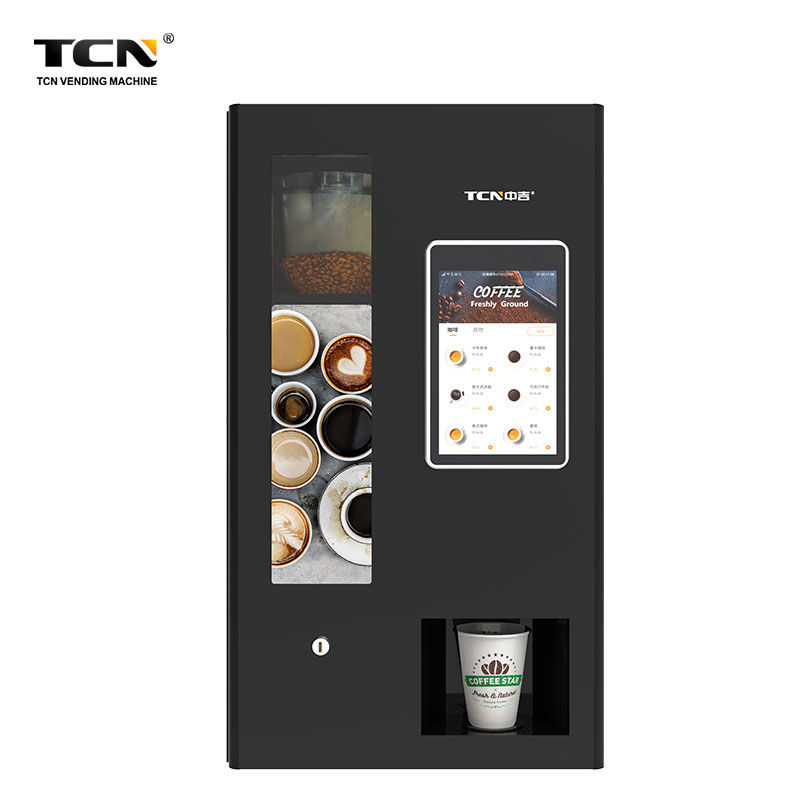

This is the machine — the TCN-NCF-4N(V10.1), TCN's genuine countertop/tabletop coffee vending machine. Found the full official spec sheet (from TCN's own user manual) plus multiple distributor listings confirming it.## TCN‑NCF‑4N(V10.1) — Countertop Coffee Vending Machine

Overview

A space-saving, tabletop version of TCN's bean-to-cup line — same fresh-ground coffee technology as the full-size floor unit, shrunk down to sit on a counter, desk, or break-room table. Designed for offices, small retail counters, and businesses that don't have floor space for the 1940mm tower model.

Dimensions & Build

- H: 810mm × W: 500mm × D: 450mm (≈31.9" × 19.7" × 17.7") — small enough for a standard countertop

- Full steel body with double tempered glass front, so the brewing process is visible to customers

- Equipped with failure self-detection and power-off protection

Capacity & Brewing

- Coffee bean hopper: 1.2KG

- Ingredient canisters: 4L×2 + 2L×1

- Total cup capacity: 140 cups

- Brewer uses 7–16g of ground coffee per cup, brewed at 92°C

- Making time: about 60 seconds per cup

- Swiss burr grinder with adjustable grind thickness, same grinding tech as the full-size unit.

Power

- Peak power: 3000W

- Standby power: under 30W

- Voltage: AC100V–240V, 50/60Hz — universal, works worldwide.

Screen & Payment

- 10.1" HD touchscreen (smaller than the 32" on the full-size floor model)

- Accepts WeChat Pay, Alipay, face recognition, cash, and other cashless payment methods

- Also configurable with coin, banknote, and credit card payment

- Managed through the same computer + WeChat intelligent iCloud back-end system as the larger machines

On the Nayax question: nothing in TCN's own documentation shows Nayax as a factory-built-in payment option on this model — TCN's native cashless stack is WeChat/Alipay/face recognition-based (China-centric), not Nayax (the Western/US vending-payment standard). In practice, operators outside China commonly bolt a Nayax VPOS Touch or Onyx reader onto TCN machines as an add-on card reader wired into the machine's payment harness — that's the standard workaround, not a factory SKU. If you want Nayax specifically, that's a conversation to have directly with the supplier ("can this unit accept a third-party Nayax reader instead of your built-in payment system") before ordering.
