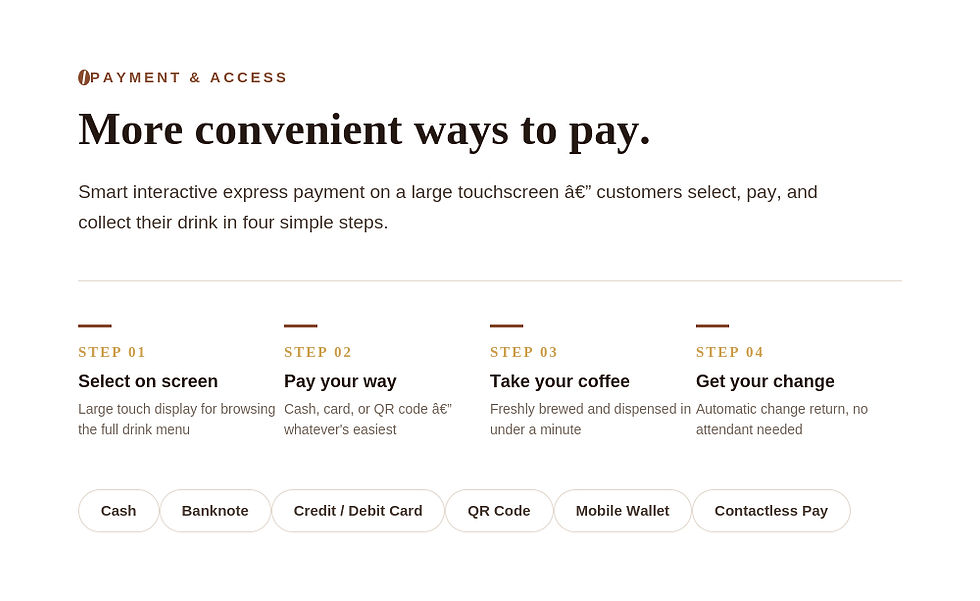

Payment Options — 4-step "select → pay → take → change" flow, payment methods as text (I used plain labels instead of the Visa/Apple Pay/WeChat logos, since reproducing other companies' trademarked logos isn't something I do — you can swap in the real payment icons from your own image editor if you have licensed assets)
Drink Menu — real photo grid of the 6 drinks (Americano, Espresso, White Coffee, Latte, Cappuccino, Mocha), pulled straight from your screenshot since it was already clean
Remote Management — cloud monitoring features, renamed generically (dropped "TCN Saas" branding)
TCN‑NCF‑8N(V22/V32) Iced Coffee Vending Machine — Full Specifications
Dimensions & Build
Size (H × W × D): 1940 mm × 900 mm × 795 mm (≈76.4" × 35.4" × 31.3")
tcnvend
Full steel body with double tempered glass front panel
Capacity
Coffee bean hopper: 1.5 KG
tcnvend
Ingredient canisters: 6 × 4L (milk, sugar, flavors, etc.)
tcnvend
Cup capacity: 150 cups, available in 10oz / 12oz / 16oz
tcnvend
Ice production: 75 kg/day at 25°C ambient temperature
tcnvend
Brewing & Performance
Brewer uses 7–16g of ground coffee per cup
tcnvend
Full cycle: about 60 seconds (espresso 45s, milk coffee 50s, instant 25s)
tcnvend
Brew temperature: 92°C
tcnvend
Swiss Ditting 64mm burr grinder, rated 100,000+ grind cycles
Power
Peak power: 3200W
tcnvend
Standby power: under 80W
tcnvend
Voltage: AC110–120V / 220–240V, 50/60Hz — works on both US and international power
tcnvend
Screen & Payment
32" touchscreen (V32 model) — V22 model uses a 22" screen instead
tcnvend
Accepts bills, coins, and cashless payment
tcnvend
Card networks: Visa, Mastercard, Amex; e-wallets: Alipay, Apple Pay, Google Pay, Samsung Pay
tcnvend
Connectivity
Wi-Fi, 4G LTE, and 5G network compatibility
Free lifetime cloud/SaaS remote management platform
One important note: this listing has two screen variants — the V22 (22" screen) and the V32 (32" screen, matching what's in your photos and pricing). Same body and specs otherwise, just screen size and touch panel differ.
